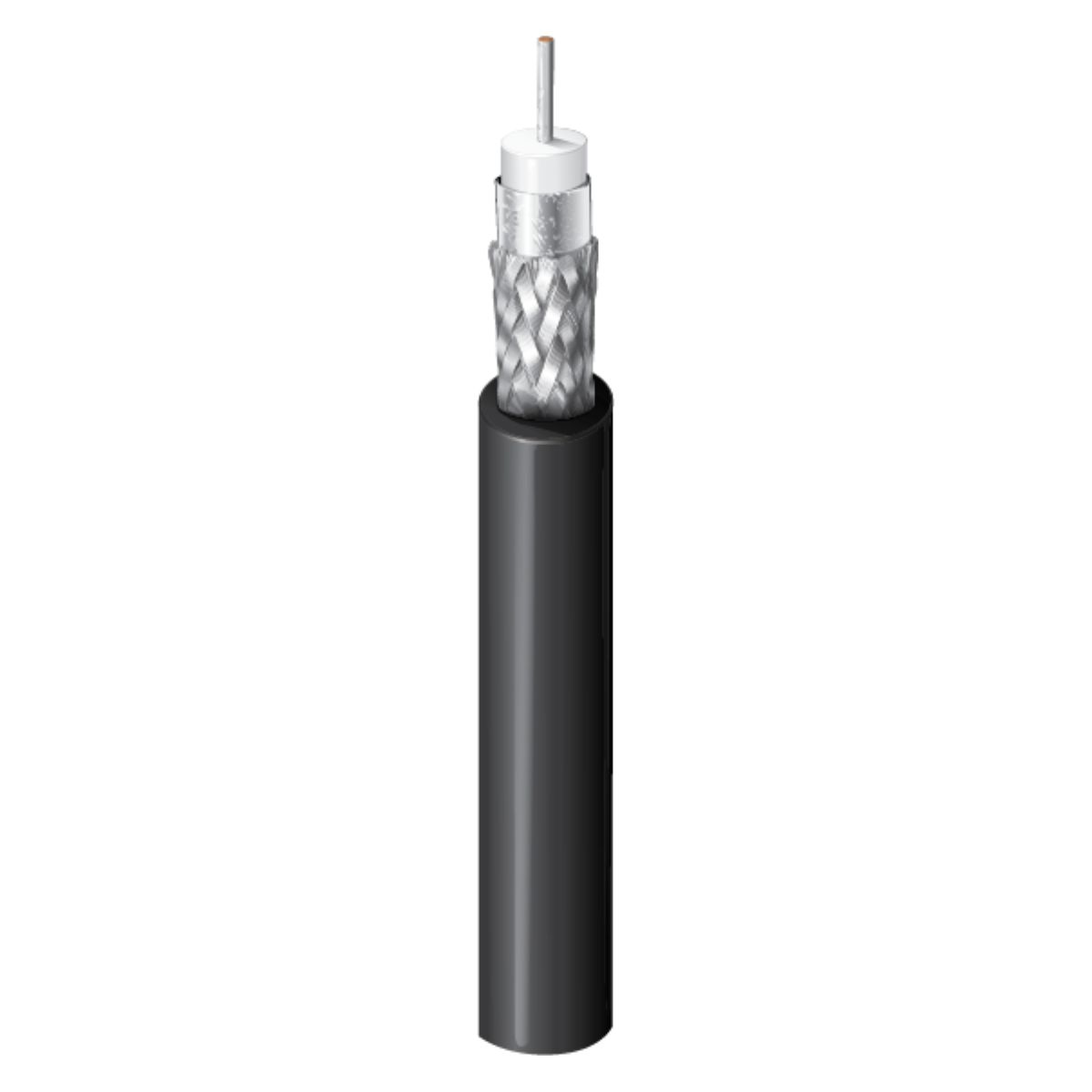

4794R RG7 COAXIAL CABLE, 4K
75 Ohm SDI Coax, Series 7, 16 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid + Foil Shield, PVC Jacket, CMR
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 16 AWG | Solid | 0.051 in | SC - Silvered Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code | Notes |
| PE - Polyethylene (Foam) | 0.225 in (5.72 mm) | White | Gas Injected |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 4.0 Ohm/1000ft | 1.8 Ohm/1000ft (5.9 Ohm/km) | 16.0 pF/ft (52.5 pF/m) | 75 Ohm | 85% |
