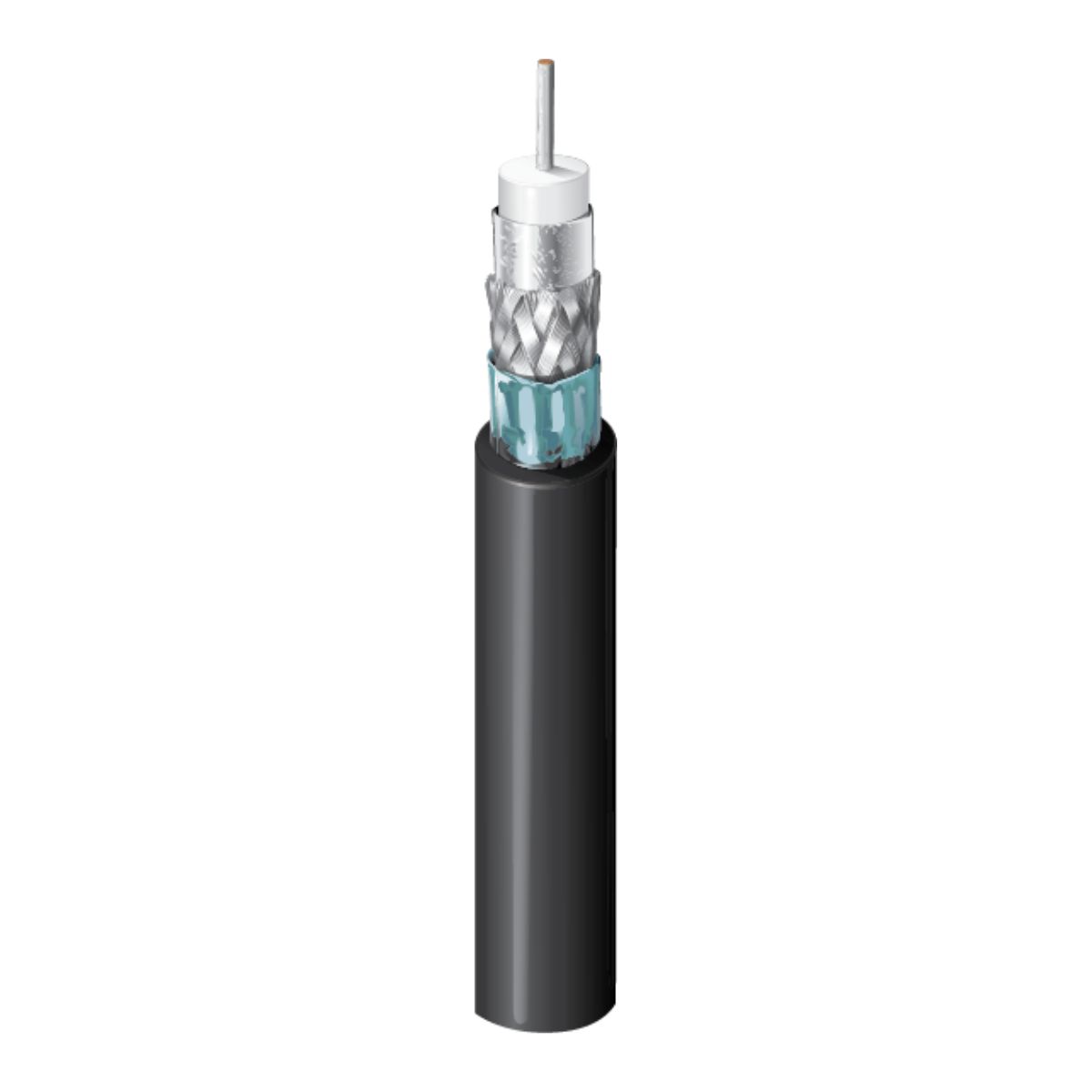

4731R RG11 COAXIAL CABLE, 4K
75 Ohm SDI Coax, RG-11, 14 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid + Foil Shield, PVC Jacket, CMR
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 14 AWG | Solid | 0.064 in | SC - Silvered Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| PE - Polyethylene (Foam) | 0.280 in (7.11 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 2.5 Ohm/1000ft | 1.3 Ohm/1000ft (4.3 Ohm/km) | 15.5 pF/ft (50.9 pF/m) | 75 Ohm | 85% |
