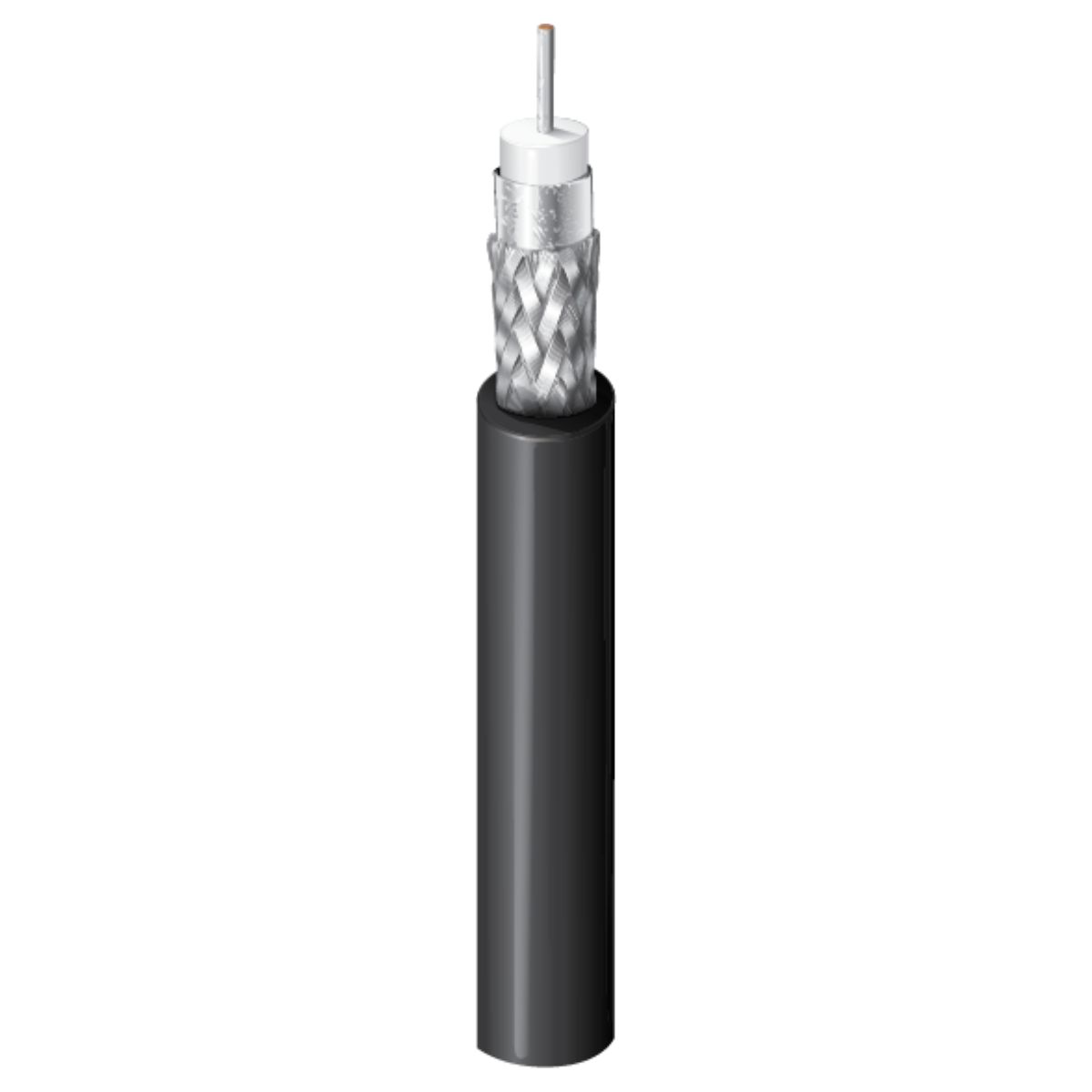

4694R RG6 COAXIAL CABLE, 4K,BLACK
75 Ohm SDI Coax, RG-6, 18 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 18 AWG | Solid | 0.040 in | SC - Silvered Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code | Notes |
| PE - Polyethylene (Foam) | 0.180 in (4.57 mm) | White | Gas Injected |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 6.4 Ohm/1000ft (21 Ohm/km) | 2.8 Ohm/1000ft (9.2 Ohm/km) | 15.9 pF/ft (52.2 pF/m) | 75 Ohm | 85% |
