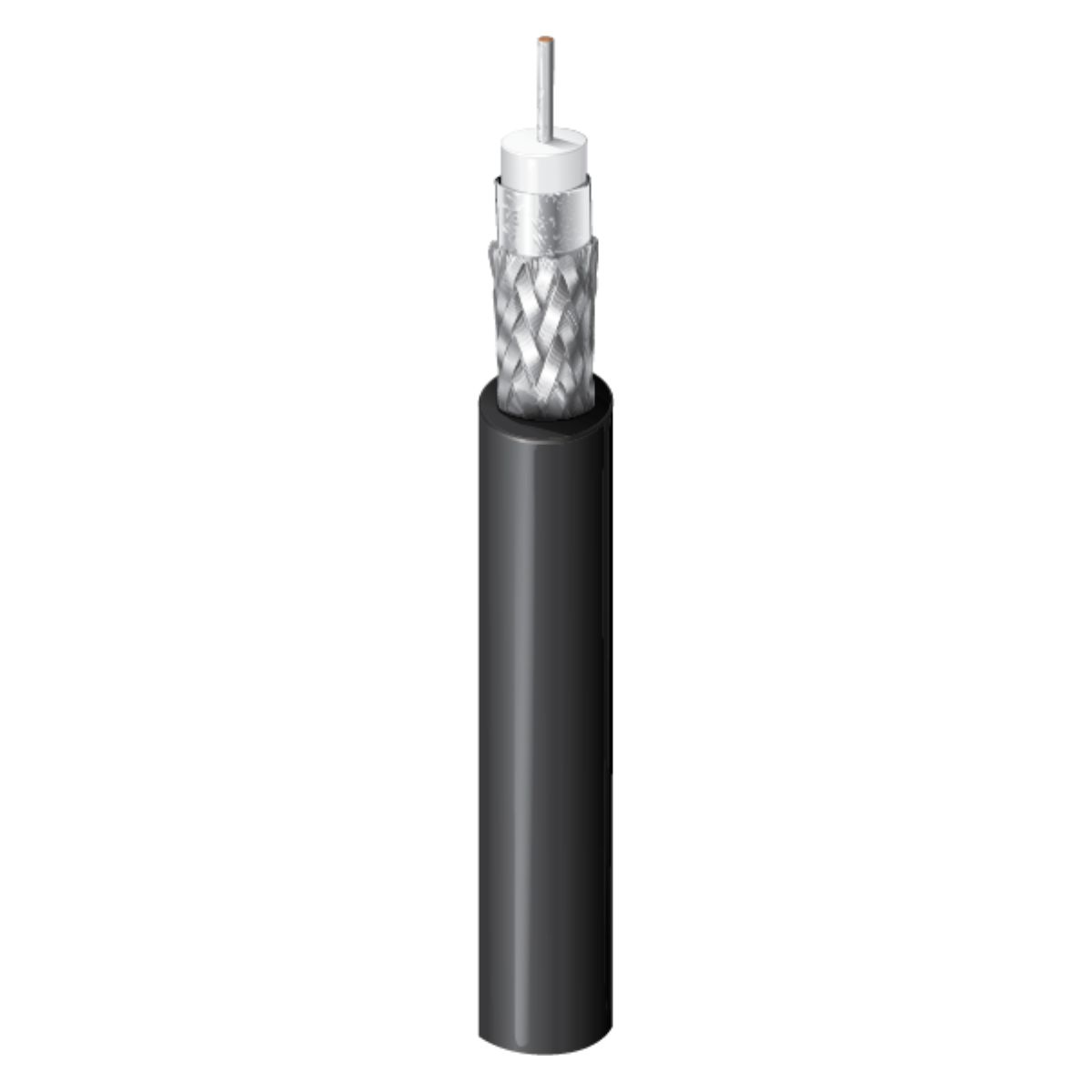

4694 RG6 COAXIAL CABLE, 4K,BLACK,PLENUM
75 Ohm SDI Coax, RG-6, 18 AWG Solid Silvered Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMP
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 18 AWG | Solid | 0.040 in | SC - Silvered Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| FEP - Fluorinated Ethylene Propylene (Foam) | 0.168 in (4.27 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
| 6.4 Ohm/1000ft | 2.9 Ohm/1000ft (9.5 Ohm/km) | 16.1 pF/ft (52.8 pF/m) | 75 Ohm | 83% |
