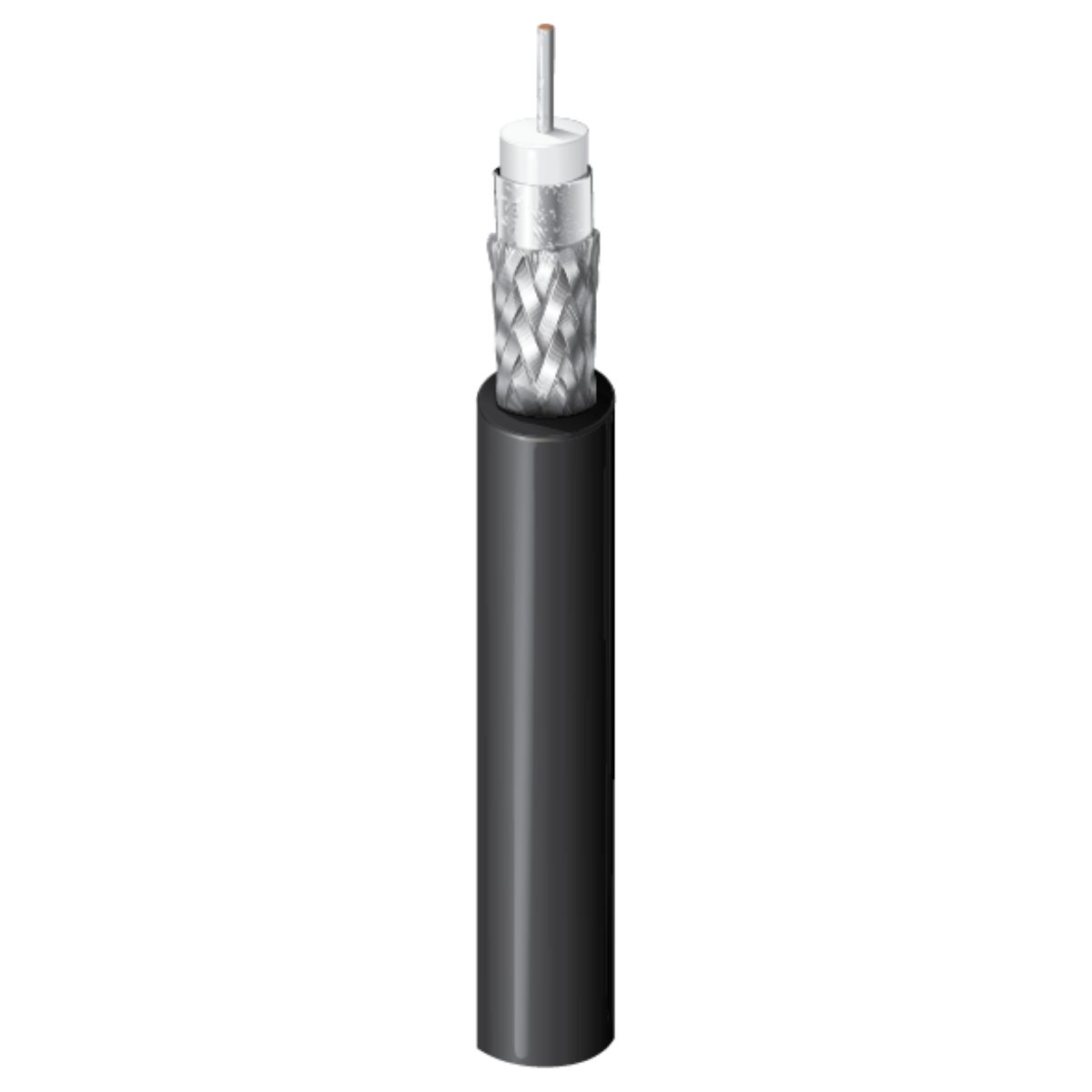

4505R RG59 COAXIAL CABLE, 4K
75 Ohm SDI Coax, RG-59, 20 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 20 AWG | Solid | 0.032 in | SC - Silvered Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code | Notes |
| PE - Polyethylene (Foam) | 0.145 in (3.68 mm) | White | Gas Injected |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 10.1 Ohm/1000ft | 3.4 Ohm/1000ft (11 Ohm/km) | 16.1 pF/ft (52.8 pF/m) | 75 Ohm | 83% |
