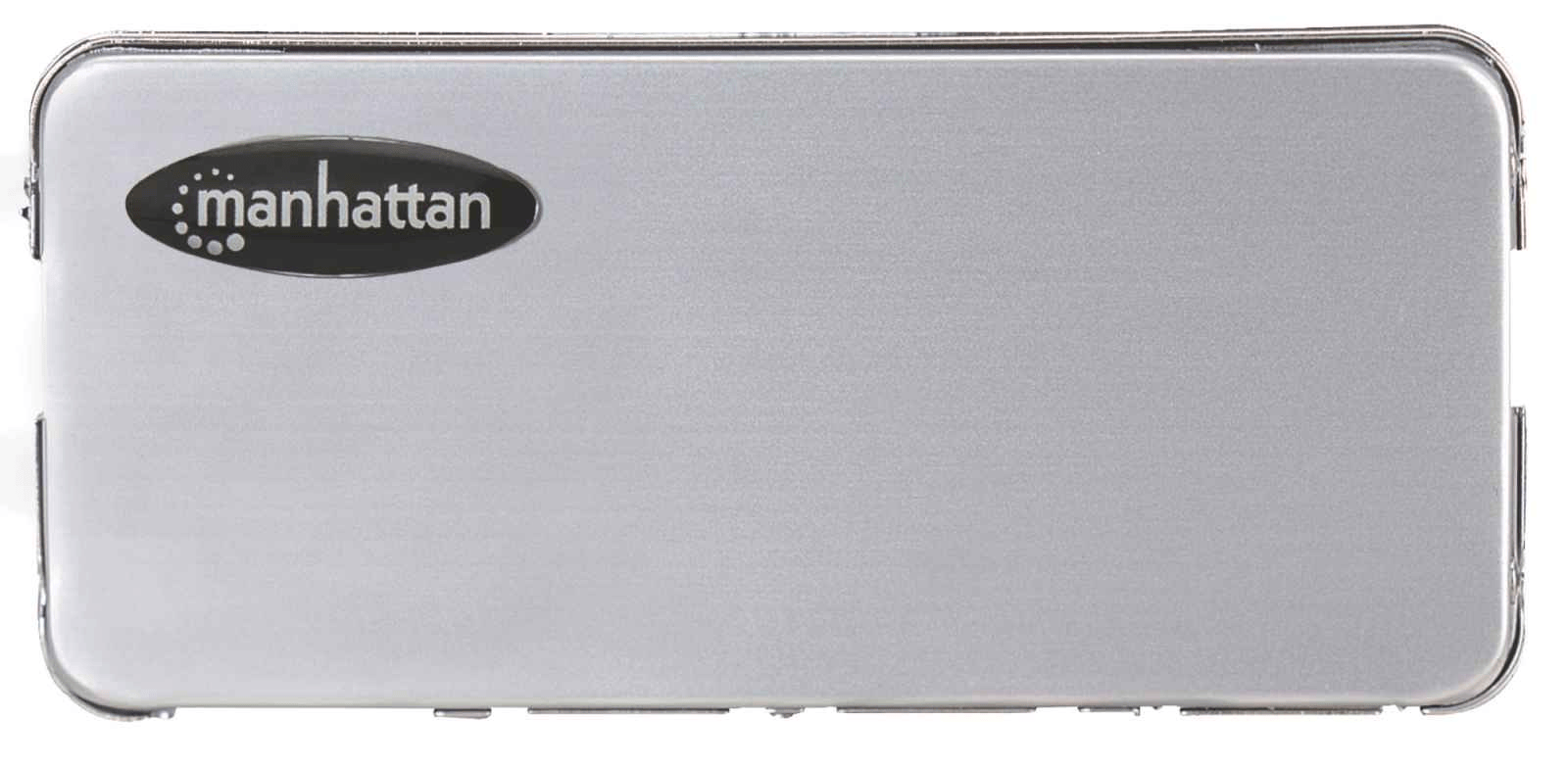

4-Port USB 3.0 Industrial Hub (161411)

The Manhattan 4-Port Industrial USB 3.0 Hub easily expands and secures your USB access in industrial environments and high-traffic areas. Versatile, sturdy mounting options allow the hub to be secured to a wall, used on a desktop or added to a DIN rail. This hub creates more open connection points for USB 3.0 devices such as external hard drives and printers. Built-in screw-lock ports offer security for cables and additional stability from vibrations in the surrounding environment. It is backward compatible with previous USB standards to provide flexibility for attached devices. The Manhattan 4-Port Industrial USB 3.0 Hub offers plug-and-play, hot-swap capabilities and data transfer speeds up to 5 Gbps.

Contact to Seller
  • Provides four SuperSpeed USB 3.0 ports for additional peripherals
  • Supports data transfer rates up to 5 Gbps
  • Rugged metal housing and screw-locking USB connections offer robustness and security in high-traffic areas and industrial environments
  • Built-in rubber feet, detachable wall mounts, and DIN-rail support provide multiple installation options
  • AC, bus-powered, and terminal-block power options with overcurrent and 20 kV ESD protection; does not support simultaneous use of terminal block and AC power
  • Supports battery-charge specification 1.2 (BC 1.2)
  • Backward compatible with all USB 2.0 and 1.1 devices
Download Product catalog
Transfer speeds: 12 Mbps / 480 Mbps / 5 Gbps
Four USB 3.0 Type-A
One USB 3.0 Type-B
9–40 reverse–polarity VDC port: 5.5 x 2.1 x 9.5 mm
9–40 reverse–polarity VDC port, three-pin terminal block
Dimensions: 15.8 x 3.2 x 8 cm (6.22 x 1.26 x 3.15 in)
Weight: 0.33 kg (0.73 lbs.)
USB 3.0 Type-A to Type-B cable: 1 m (3 ft.); screw-lock connector
Housing: metal
Detachable metal wall-mount brackets
Detachable DIN-rail mount bracket
DIN-rail: In accordance with IEC/EN 60715 (top hat)
LED power indicators: green
Does not support simultaneous use of terminal block and DC power
USB-enabled PC or Mac system
Windows XP/Vista/7/8.1/10 or Mac OS 9 or above
