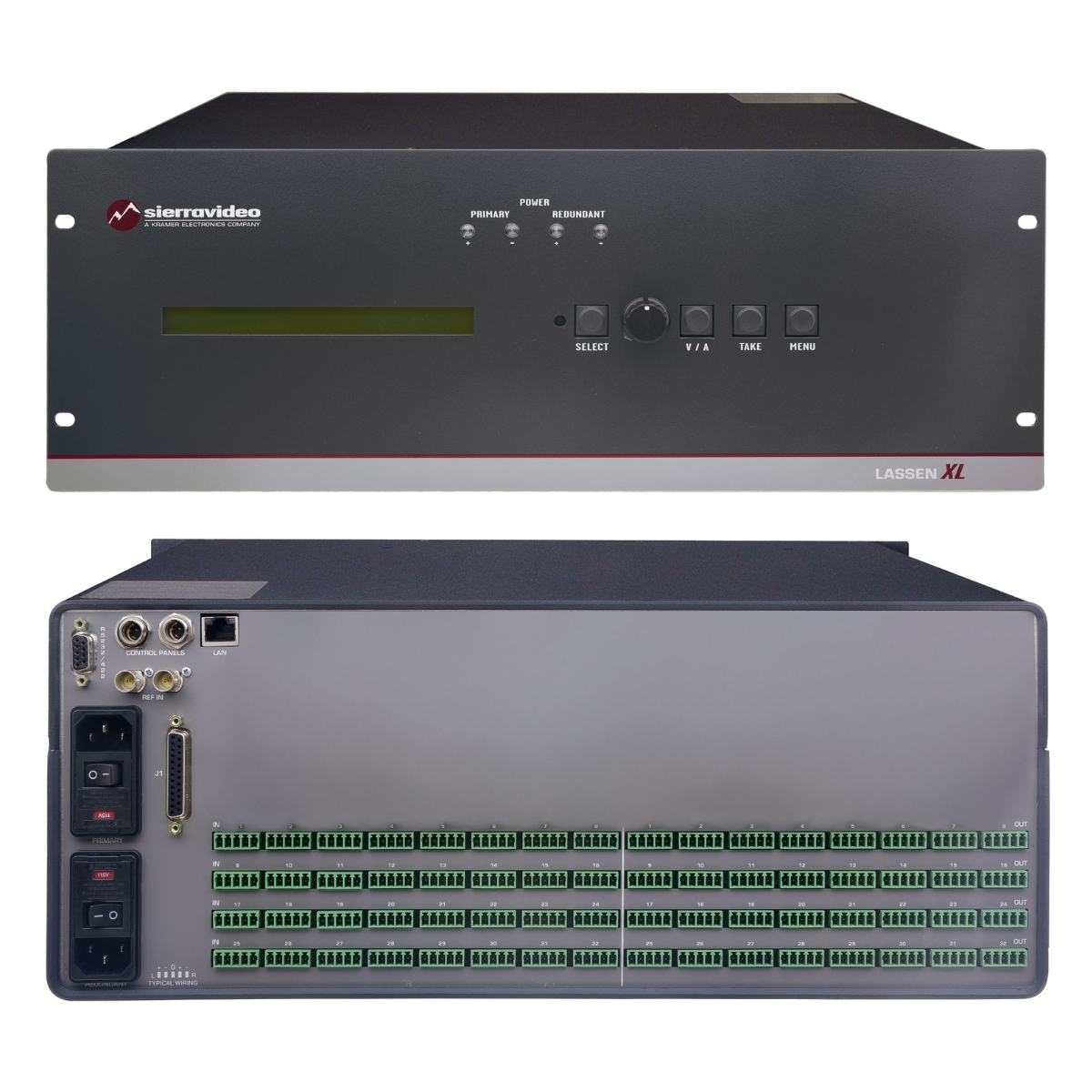

3232SR-XL Matrix Switcher with Redundant Power
The 3232SR-XL is a 32×32 analog balanced stereo audio matrix switcher from the Lassen XL Series, designed for flexible audio routing in space- and cost-efficient installations. It features a compact 4RU frame, redundant power supplies for reliable operation, and convenient control through the front panel, RS-232, or Ethernet.
- Lassen XL Series
- Input and output gain and attenuation
- Control — RS–232, RS–422 & Ethernet
- Redundant power supply
| Inputs | 32 Balanced/Unbalanced Stereo Analog Audio: 5−pin terminal block connectors |
| Outputs | 32 Balanced/Unbalanced Stereo Analog Audio: 5−pin terminal block connectors |
| Ports |
2 Sync: On BNC connectors 1 Ethernet: On an RJ−45 connector 1 RS-232/422: On a 9–pin D–sub connector 2 RS-485: On male mini-XLR connectors, for control panel 1 AC Power: On an AC power connector |
| Analog Audio |
Input - Max. Source Level +24dBu Input - Impedance >20kΩ Output - Max. Source Level +24dBu balanced +18dBu unbalanced Output - Impedance <50Ω |
| Enclosure | Size: 19" — 4U — mounts in a standard 19" rack Dimensions: 19” x 18.5” x 7” W, D, H |
