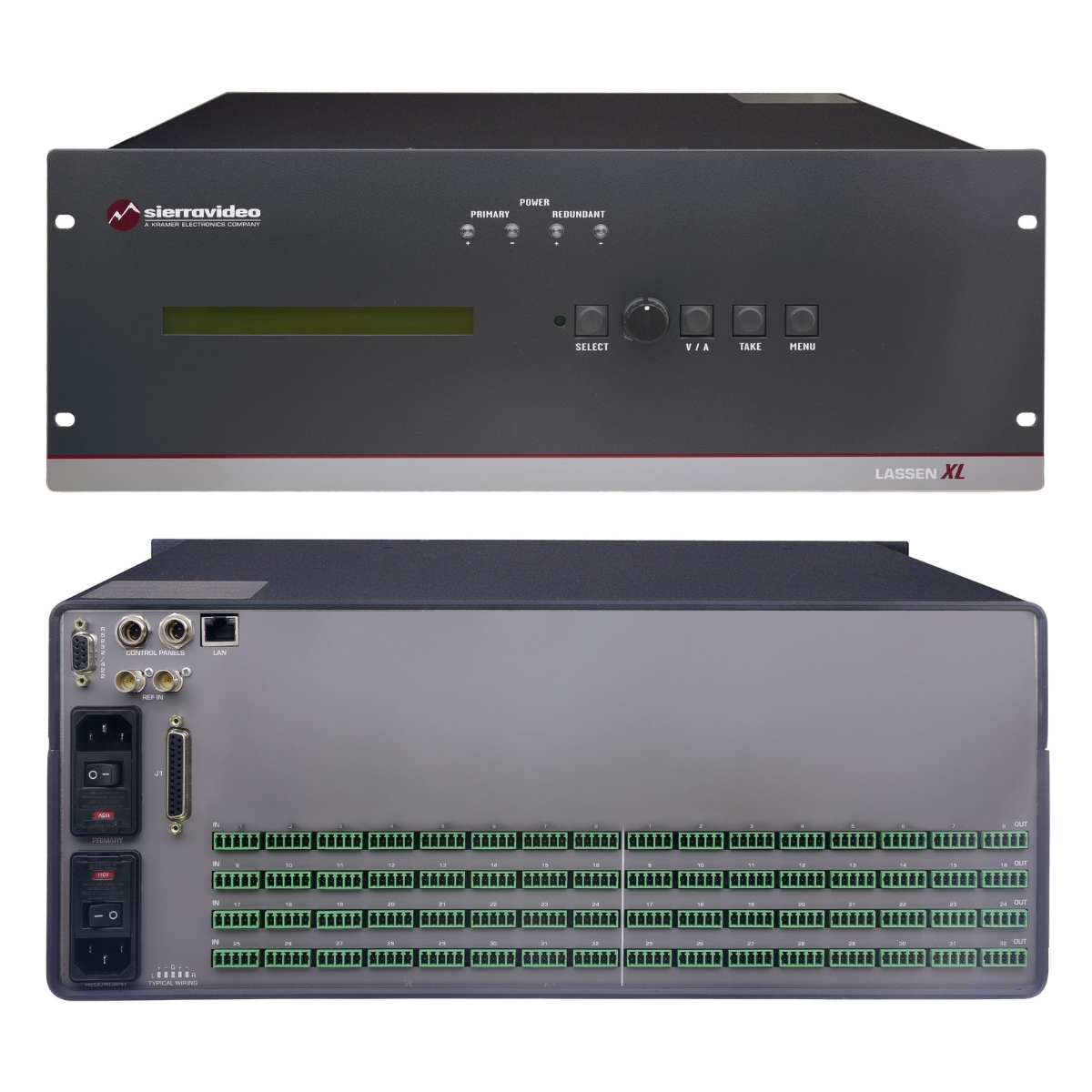

3232S-XL Analog Balanced Stereo Audio Matrix Switcher
The 3232S-XL is a 32x32 analog balanced stereo audio matrix switcher featuring a compact 3RU design, flexible audio routing, and front-panel, RS-232, and Ethernet control for professional audio applications.
- Lassen XL Series
- Input and output gain and attenuation
- Control — RS–232, RS–422 & Ethernet
| Inputs | 32 Balanced/Unbalanced Stereo Analog Audio: On 5−pin terminal block connectors |
| Outputs | 32 Balanced/Unbalanced Stereo Analog Audio: On 5−pin terminal block connectors |
| Ports |
2 Sync: On BNC connectors 1 Ethernet: On an RJ−45 connector 1 RS-232/422: On a 9–pin D–sub connector 2 RS-485: On male mini-XLR connectors, for control panel 1 AC Power: On an AC power connector |
| Analog Audio |
Input - Max. Source Level +24dBu Input - Impedance >20kΩ Output - Max. Source Level +24dBu balanced +18dBu unbalanced |
| Enclosure |
Size: 19" — 3U — mounts in a standard 19" rack Dimensions: 19” x 18.5” x 5.25” W, D, H |
