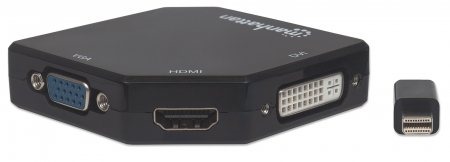

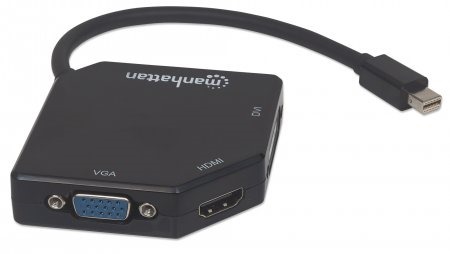

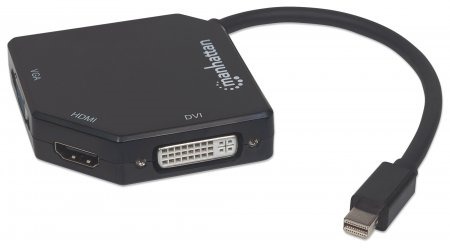

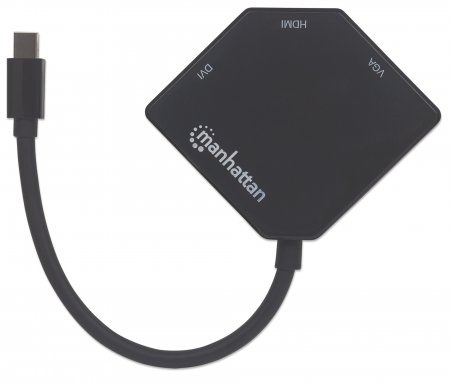

3-in-1 4K Mini DisplayPort Adapter (208376)

The Manhattan 3-in-1 4K Mini DisplayPort Adapter connects Mini DisplayPort sources to HDMI, DVI, and VGA displays. It supports 4K HDMI and 1080p DVI/VGA, offering easy plug-and-play installation in a compact design.

Contact to Seller
  • 3-in-1 adapter converts a Mini DisplayPort signal to a 4K@30Hz HDMI, 1080p@60Hz DVI, or VGA signal (no simultaneous output)
  • Delivers a high-quality digital video signal — ideal for using a Mini DP source with an HDMI, DVI, or VGA display
  • Supports Deep Color, high-bandwidth 3 Gbps applications and resolutions at 1080p@60Hz (up to 1920 x 1200) for VGA and DVI or 4K@30Hz (3840 × 2160) for HDMI
  • Allows the monitor, TV, or display to be configured in Extended or Mirrored modes
  • HDMI configuration supports high-definition video resolution up to 4K@30Hz (3840 x 2160p) and uncompressed digital 5.1 audio
  • DVI configuration supports high-definition video resolution up to 1080p@60Hz (1920 x 1080p); DVI does not support audio
  • VGA configuration supports high-definition video resolution up to 1080p@60Hz (1920 x 1080p); VGA does not support audio
Download Product catalog
Mini DisplayPort 20-pin male
HDMI 19-pin female, passive
DVI-I 24+5-pin female, passive
VGA/HD15 15-pin female, active
Nickel-plated contacts
Molded PVC and ABS Shell
8-bit and 10-bit Deep Color support
3 Gbps bandwidth
Maximum single link resolution
3840 x 2160 (4K@30Hz) for HDMI 1920 x 1200 (1080p@60Hz) for DVI and VGA
