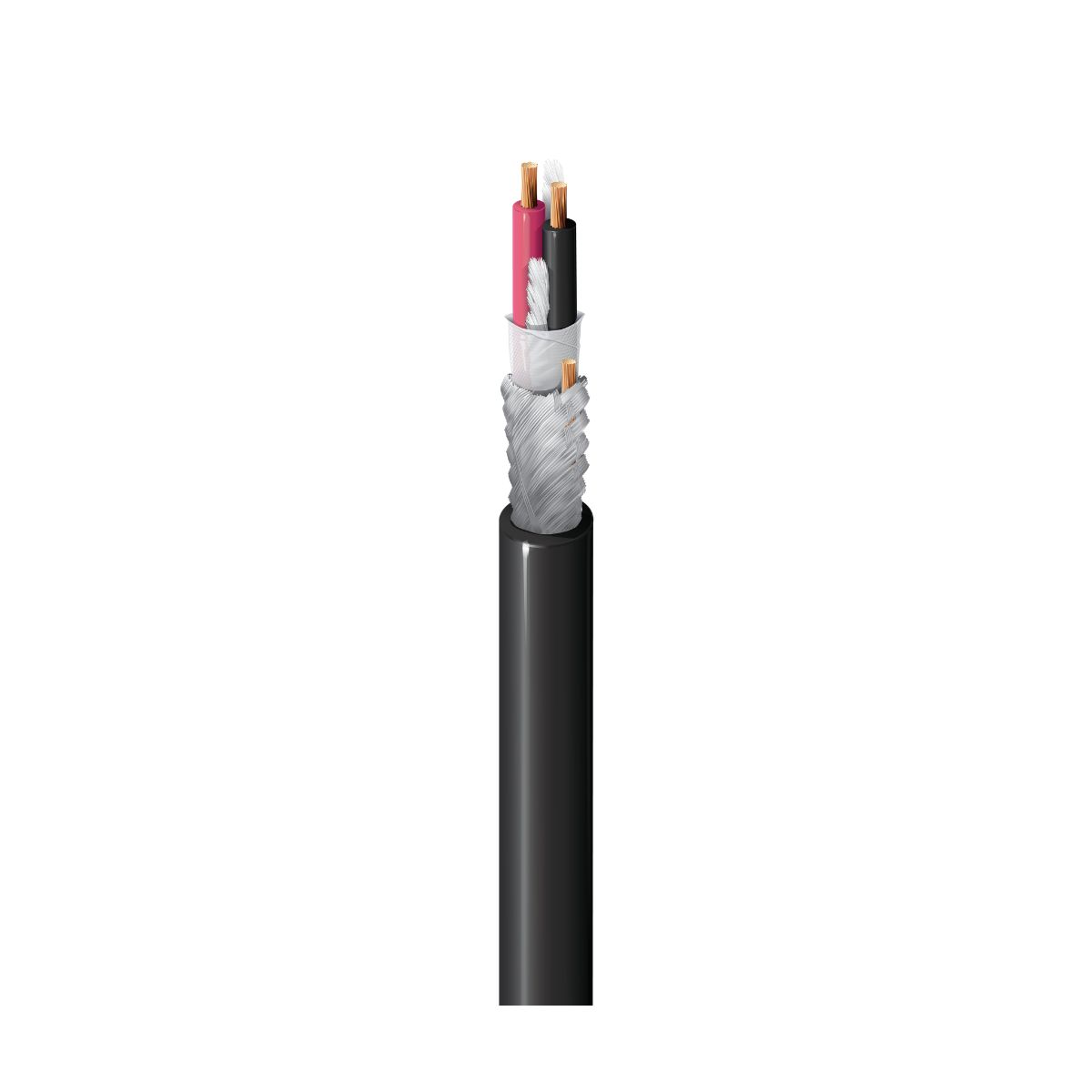

1800F DIGITAL 110 OHMS AUDIO CABLE, AES/EBU,FLEXIBLE
Digital Microphone Cable, 1 Pair 24 AWG (42x40) Bare Copper, PE insulation, 95% Tinned Copper French Braid Shield, Matte PVC jacket, CL2R-rated, Flexible
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Pair(s) | 1 | 24 AWG | 42x40 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
| Pair(s) | PE - Polyethylene (Foam) | 0.017 in (0.43 mm) | 0.058 in (1.5 mm) | Red & Black | HDPE |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance | Nom. Velocit | Max. Current |
| Pair(s) | 23.7 Ohm/1000ft | 12 pF/ft (39 pF/m) | 26 pF/ft (85 pF/m) | 110 Ohm | 0.18 µH/ft (0.59 µH/m) | 76% | 3.8 Amps per conductor @ 30°C |
