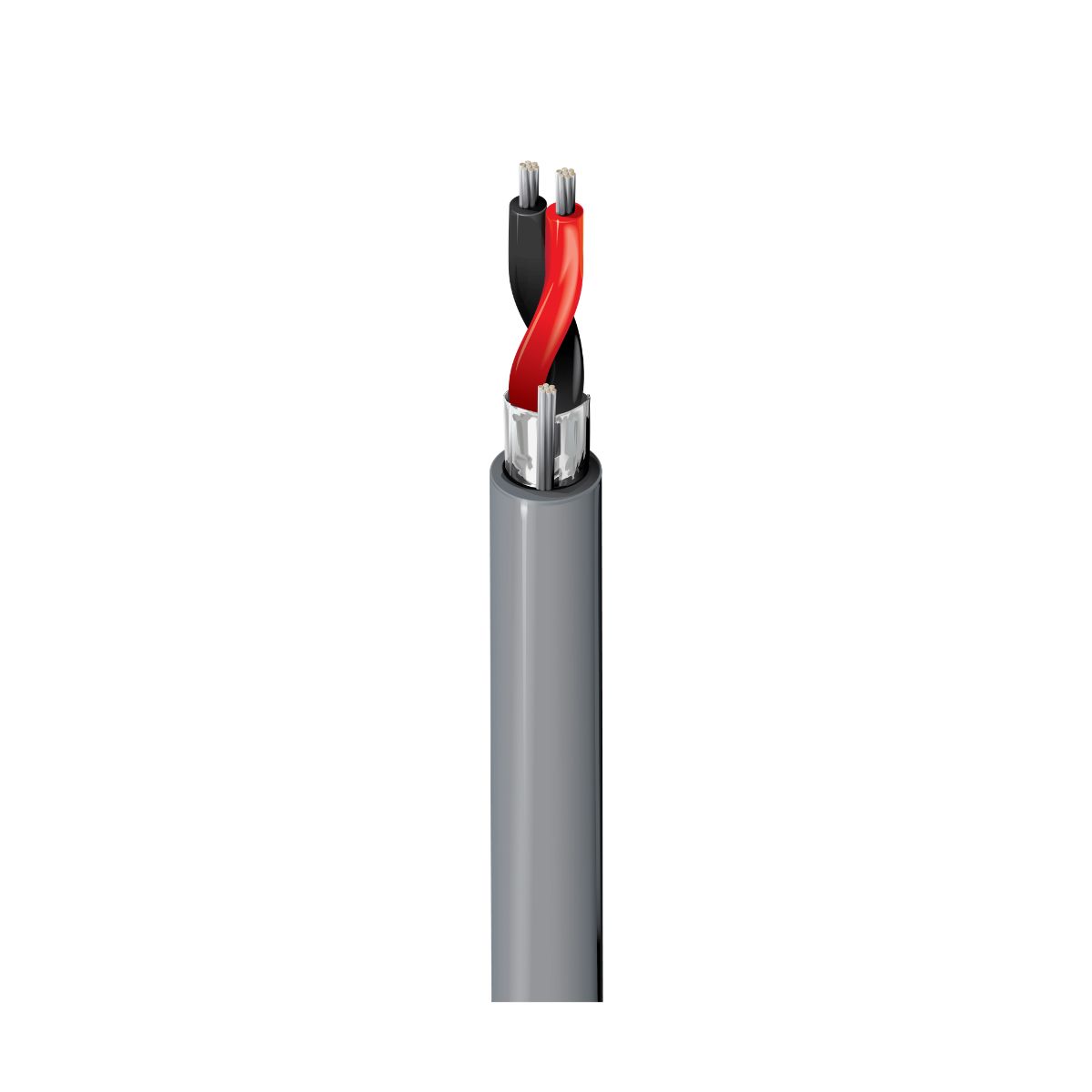

1800B DIGITAL 110 OHMS AUDIO CABLE, AES/EBU
Digital Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Pair(s) | 1 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
| Pair(s) | PE - Polyethylene (Foam) | 0.022 in (0.56 mm) | 0.068 in (1.7 mm) | Red & Black | HDPE |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
| Pair(s) | 28.8 Ohm/1000ft (94.5 Ohm/km) | 12 pF/ft (39 pF/m) | 26 pF/ft (85 pF/m) | 110 Ohm | 0.18 µH/ft (0.59 µH/m) | 76% | 3.8 Amps per conductor @ 30°C |
