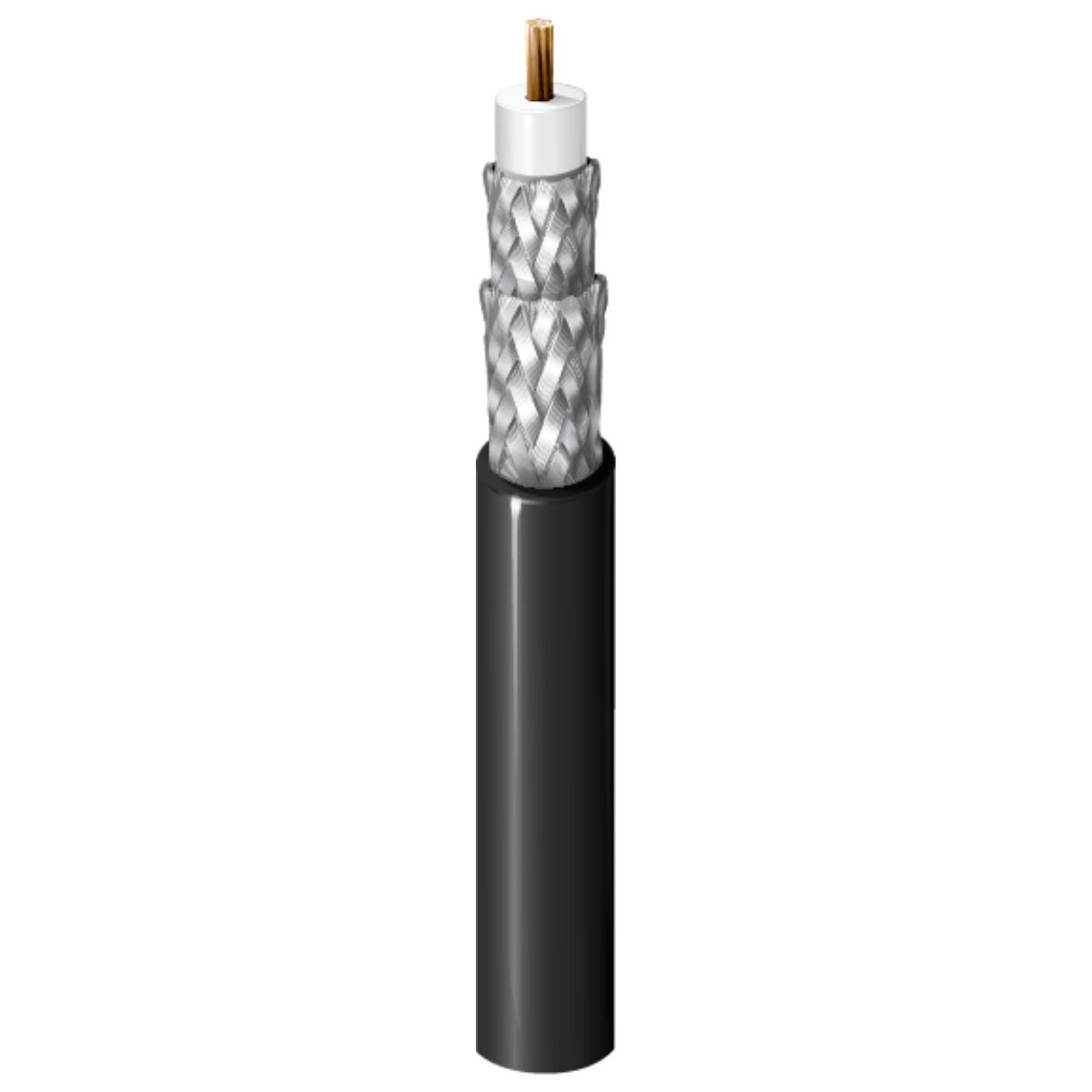

1505F RG59 FLEXIBILE COAXIAL CABLE
75 Ohm SDI Coax, RG-59, 22 AWG (7x29) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 21 AWG | 7x29 | 0.032 in | BC-C - Bare Copper (Compacted) |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| PE - Polyethylene (Foam) | 0.145 in (3.68 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 12.2 Ohm/1000ft | 2.4 Ohm/1000ft (7.9 Ohm/km) | 17.0 pF/ft (55.8 pF/m) | 75 Ohm | 80% |
