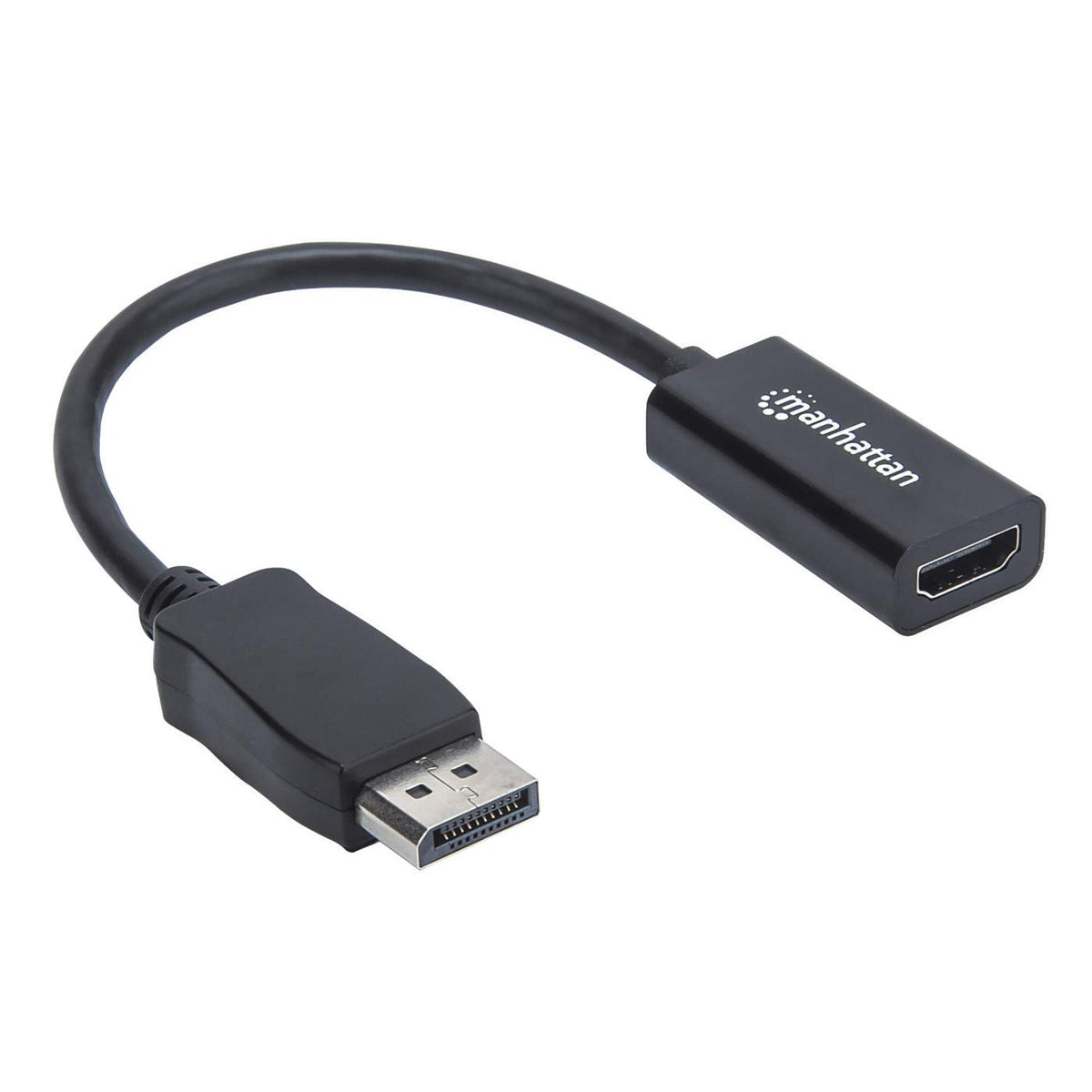

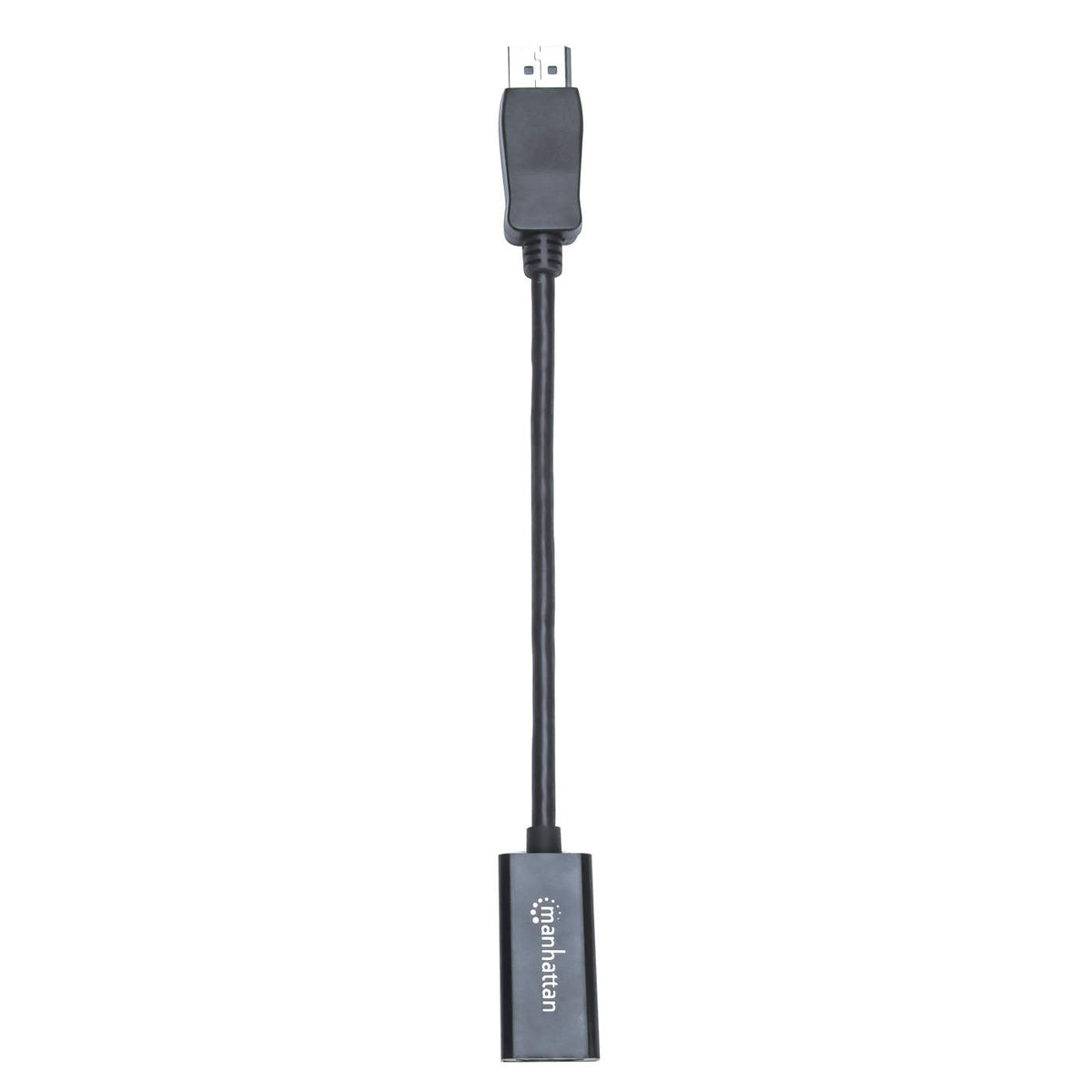

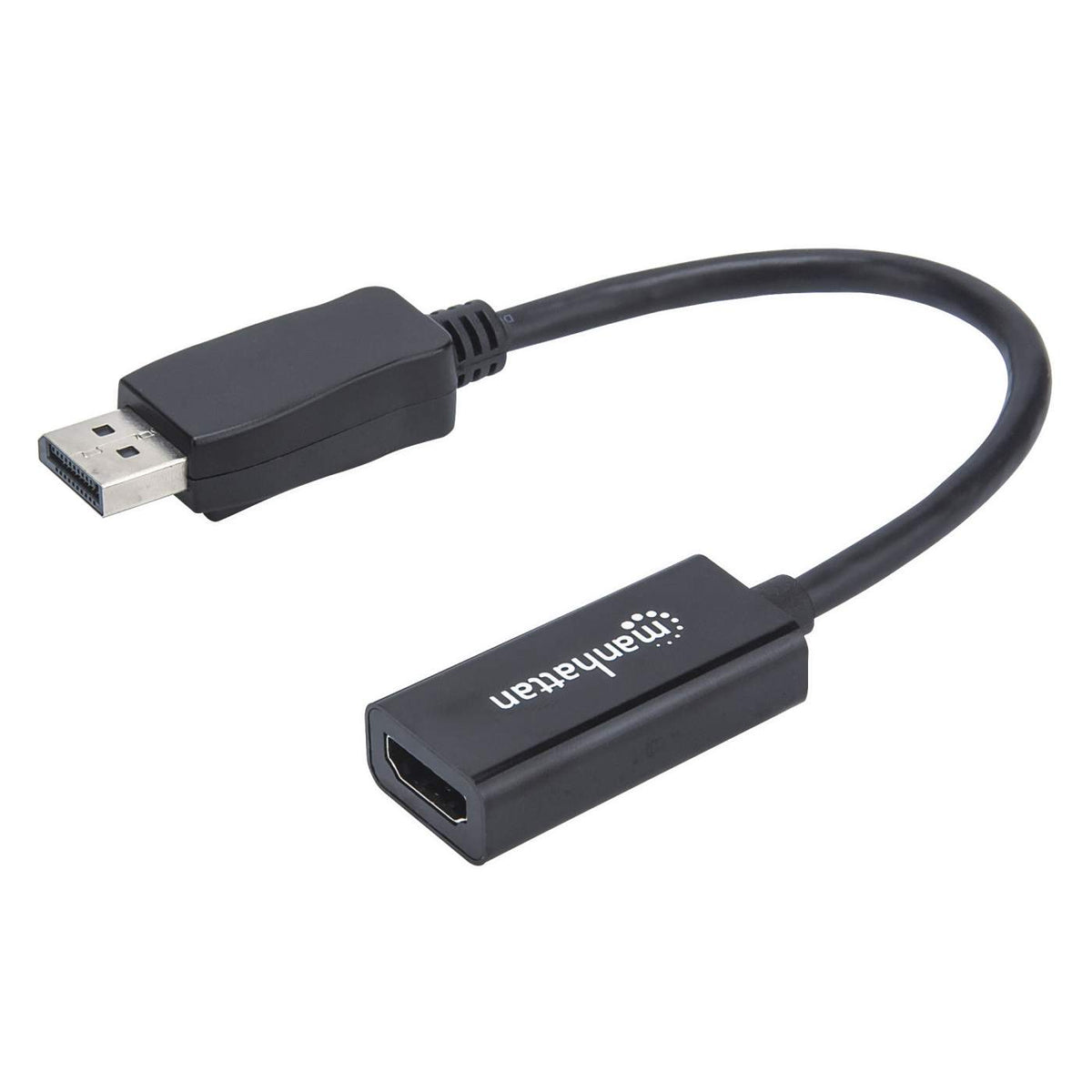

1080p Passive DisplayPort to HDMI Adapter (151634)

The Manhattan Passive DisplayPort to HDMI Adapter connects DisplayPort-equipped devices to HDMI displays with easy plug-and-play installation. It supports DP++ (dual-mode) graphics cards and provides a compact, reliable solution for HD video connectivity.

Contact to Seller
  • Converts a DisplayPort signal to an HDMI signal
  • Supports Deep Color, high-bandwidth 10.8 Gbps applications, and HD resolutions at 1080p@60Hz (1920x1200)
  • Delivers a high-quality digital video signal — perfect for connecting a new DisplayPort source to an existing HDMI display
  • Passive adapter requires DP++ (dual-mode) video/graphics cards to regenerate the signal and ensure the best connection to an HD monitor, projector, and more
  • Integrated design simplifies and eliminates cable tangles; latching connector ensures secure connection
  • Easy installation; Plug and Play
Download Product catalog
8-bit and 10-bit Deep Color support
10.8 Gbps bandwidth
Maximum single-link resolution: 1920x1200 (1080p@60Hz)
Auxiliary channel support: 1 Mbps
One-lane, one-direction, four-line connection support
DisplayPort 20-pin male (latching)
HDMI 19-pin female
Gold-plated contacts
Molded PVC
Dimensions: 20 x 2.2 x 1.4 cm (5.91 x 0.87 x 0.55 in.)
Cable length: 15 cm (5.91 in.)
