1080p 4-Port HDMI Multiviewer Switch (207881)

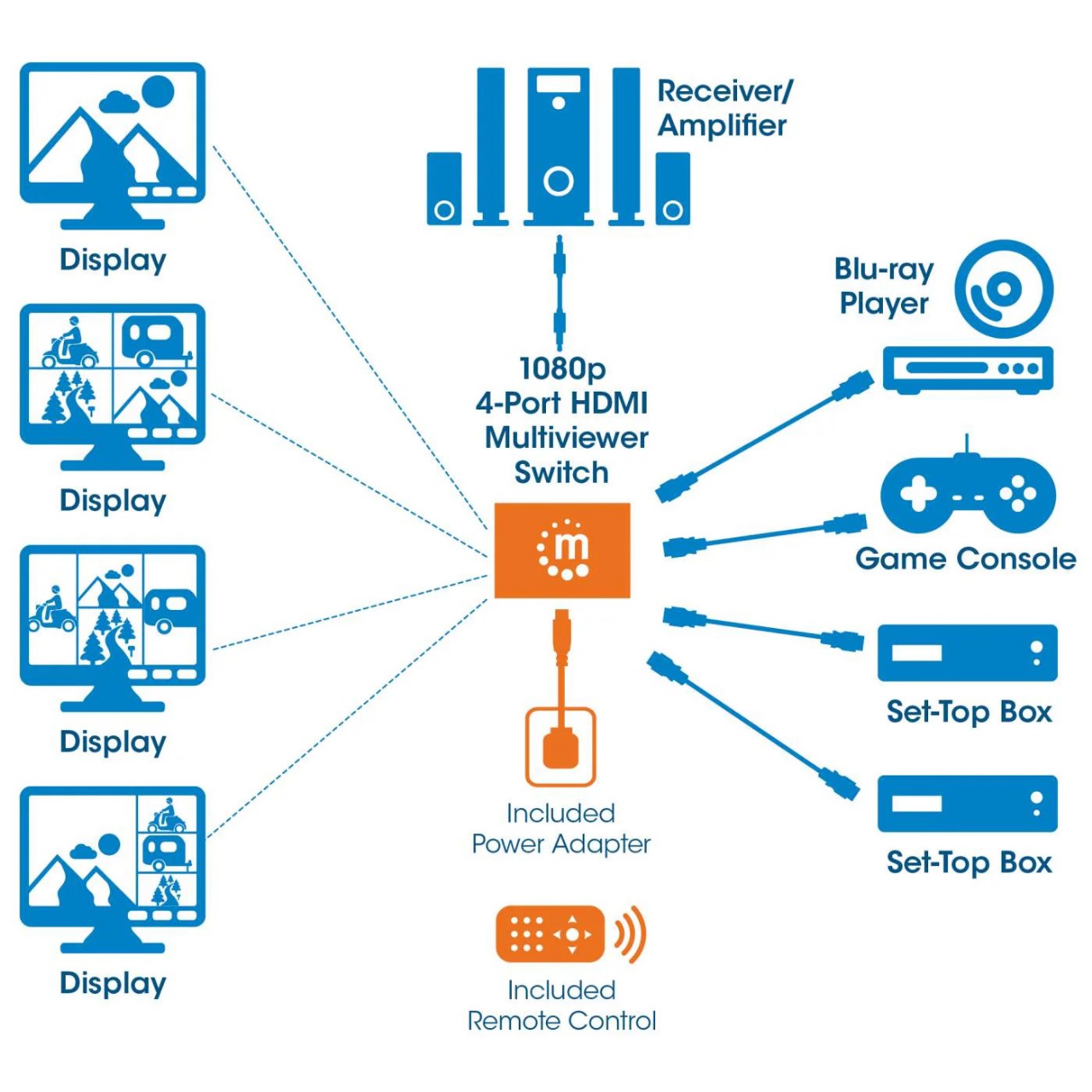

The Manhattan 1080p 4-Port HDMI Multiviewer Switch lets you connect up to four HDMI sources to a single Full HD or 3D display. Its Multiviewer Combo Mode allows all four inputs to be viewed simultaneously on one screen, making it ideal for gaming, entertainment, surveillance, and professional monitoring.

Contact to Seller
  • Share up to four HDMI Audio/Video sources on one display at the same time or one at a time
  • Multiviewer function supports four customizable modes: Full Screen and three variations of Combo Mode, with seamless switching between sources
  • Supports 1080p resolution as well as HD 3D video and Deep Color (36-bits/pixel)
  • 1080p resolution, 3D, Deep Color
  • Integrated video bandwidth amplifier
  • Supports LPCM, DTS Digital, DTS-HD Master Audio, and Dolby TrueHD audio
  • Supports Stereo, Coaxial, and Toslink Audio output for connection to an amplifier or receiver for the best sound quality

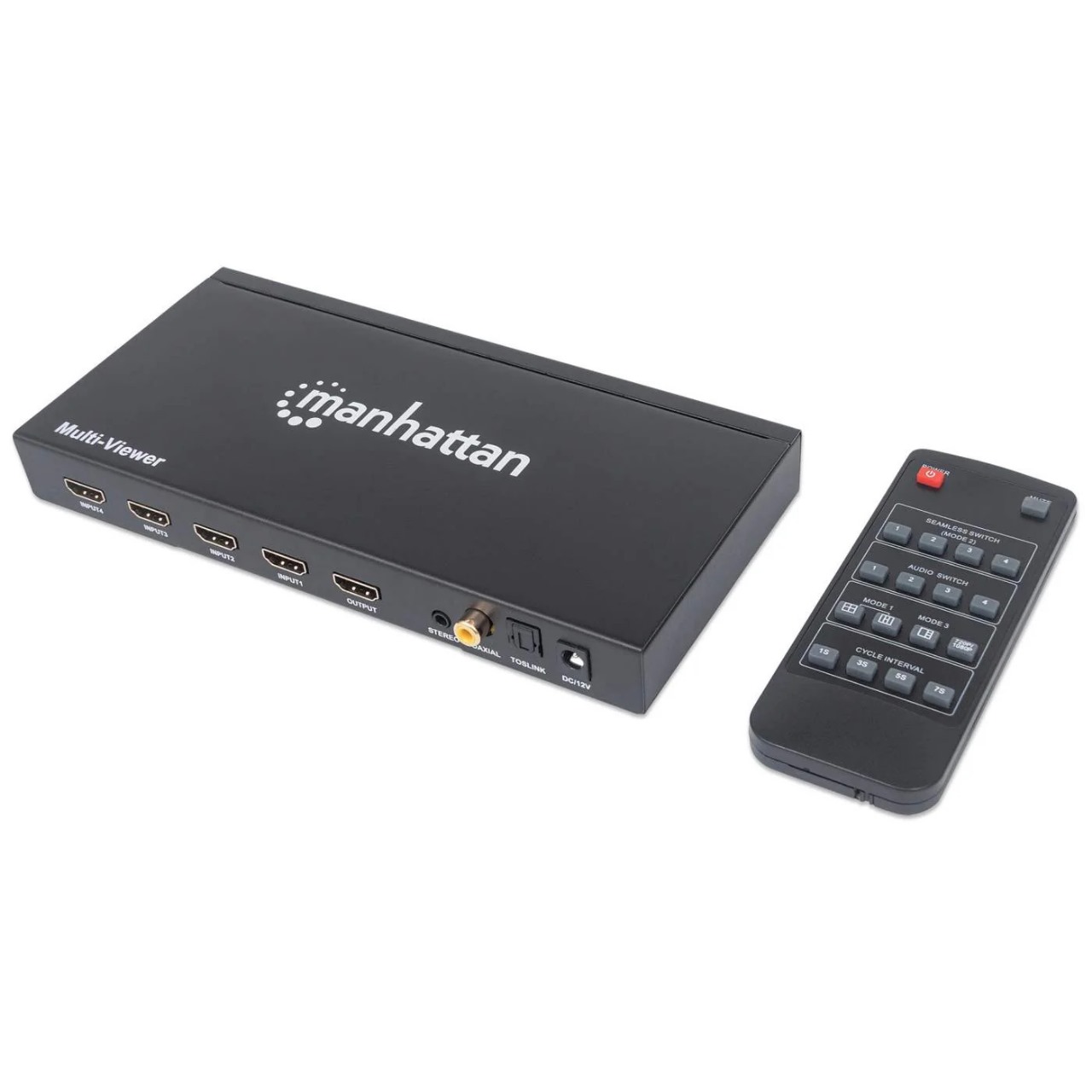

  • Supports source switching via IR remote control or manual switching with the push of a button
  • A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (reducing space and cost needed for multiple displays), security, and other applications
  • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers, and more
  • Fully HDCP compliant
  • AC powered with Plug and Play installation; no special setup or remote required
  • Plug-and-play installation
Download Product catalog
HDMI 1.3
HDCP 1.4a
CE
FCC
RoHS2

General

Source-to-switch range: up to 15 m (49 ft.)
Switch-to-display range: up to 15 m (49 ft.)
Seamless switching is supported when the resolutions of the sources are the same (three-second delay when the resolutions of the sources are different)
Power: 12 VDC @ 2 A; AC power adapter: 0.9 m (2.9 ft.)
Remote battery (included): CR2025 3 V lithium cell

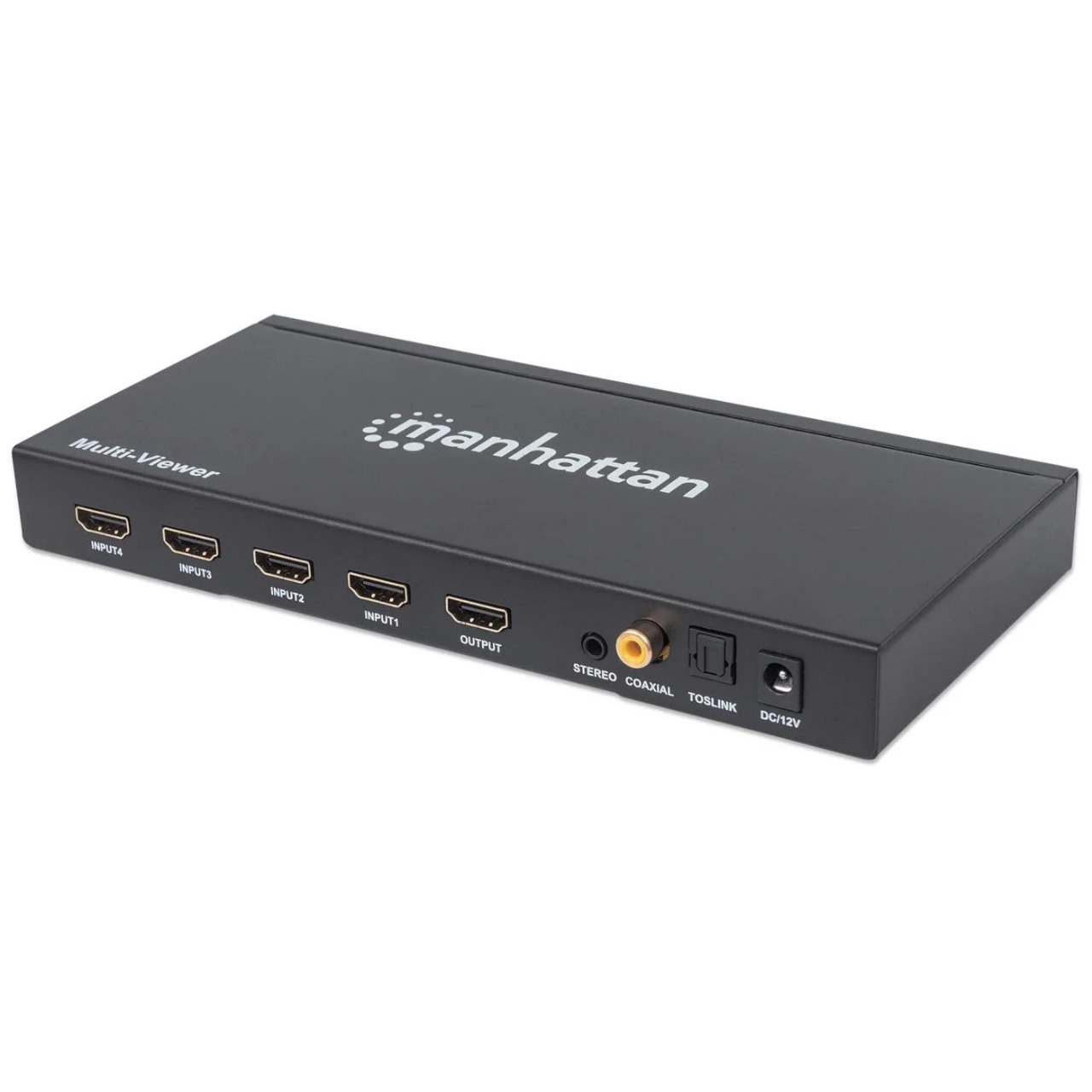

Connections
One HDMI female, 19-pin (output)
Four HDMI female, 19-pin (input)
One Stereo female, 3.5 mm (output)
One Coaxial female, S/PDIF (output)
One Toslink female (output)
One USB, Mini-B (input), factory use only
One 12 VDC power female, OD 5.5 mm / ID 2.1 mm (input)
