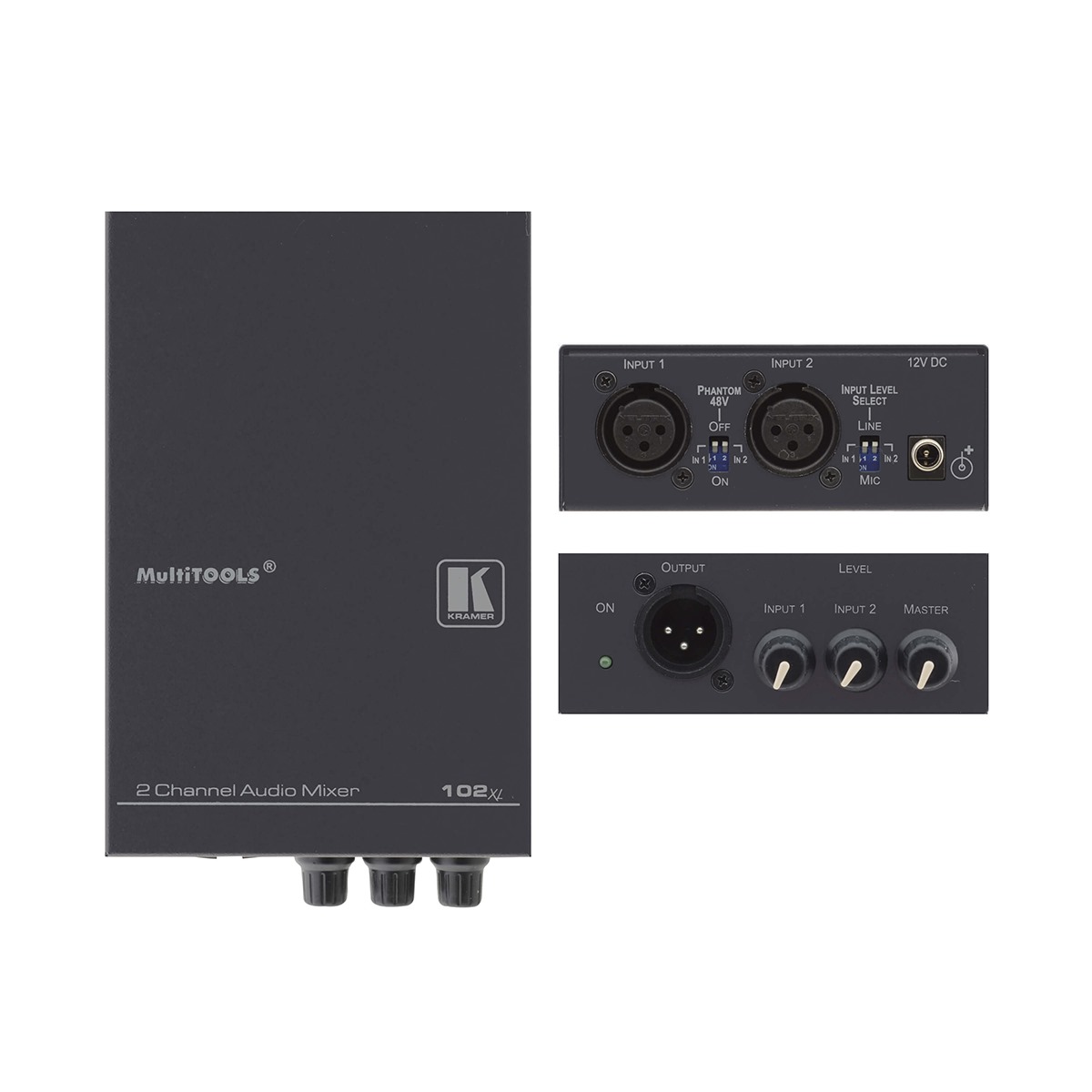

102xl 2–Channel Balanced Mono Audio Mixer

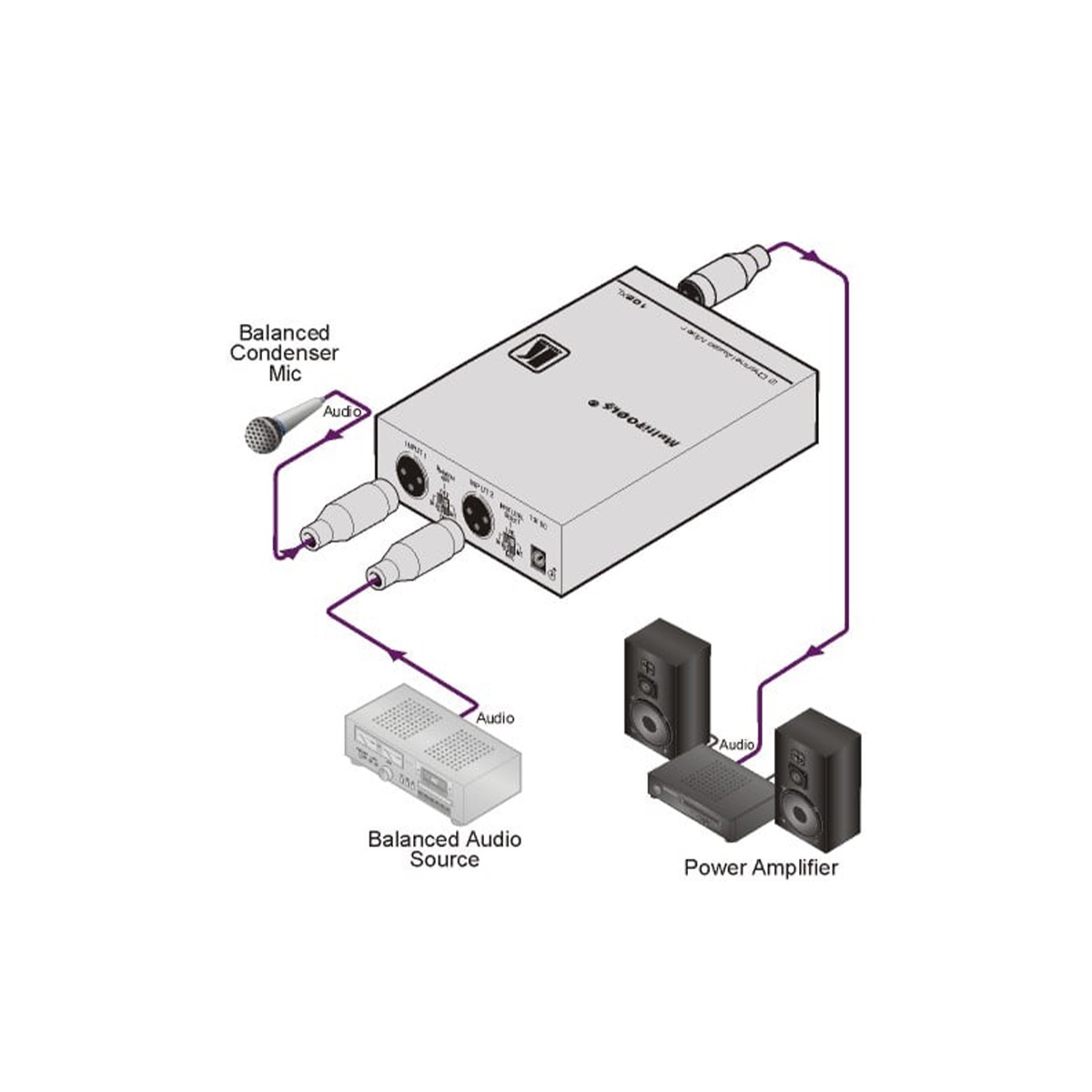

The 102xl is a high-performance 2-channel mono audio mixer designed for balanced line-level and microphone-level signals. It combines two mono audio inputs into a single mixed output, making it suitable for professional audio systems and sound integration applications.

Contact to Seller
  • S/N Ratio — 91.5dB (line level) & 62.5dB (mic level)
  • Line or Mic Level — Input selectable.
  • Phantom Power — 48V DC (input selectable)
  • Level Control — Input 1, 2 & master
  • Rack Kit — RK–1
Download Product catalog
INPUTS 2 line/mic balanced mono on XLR (F) connectors
OUTPUT 1 line-balanced mono on an XLR (M) connector
MAX. OUTPUT LEVEL 18Vpp
BANDWIDTH (-3dB) >100kHz
S/N RATIO Line: 91.5dB Mic: 62.5dB, 1kHz
CONTROLS Line: <−48dB to +11.4dB, Mic: <−1.9dB to +62.5dB, minimum to absolute gain. Phantom +48V selection for condenser microphone by 90° DIP−switches; Line/microphone input mode selection by 90° DIP−switches
COUPLING Input: AC, Output: DC
AUDIO THD + NOISE Line: 0.013%, mic: 0.079%
AUDIO 2nd HARMONIC Line: 0.002%, mic: 0.01%
POWER CONSUMPTION 12V DC, 140mA (DC)
