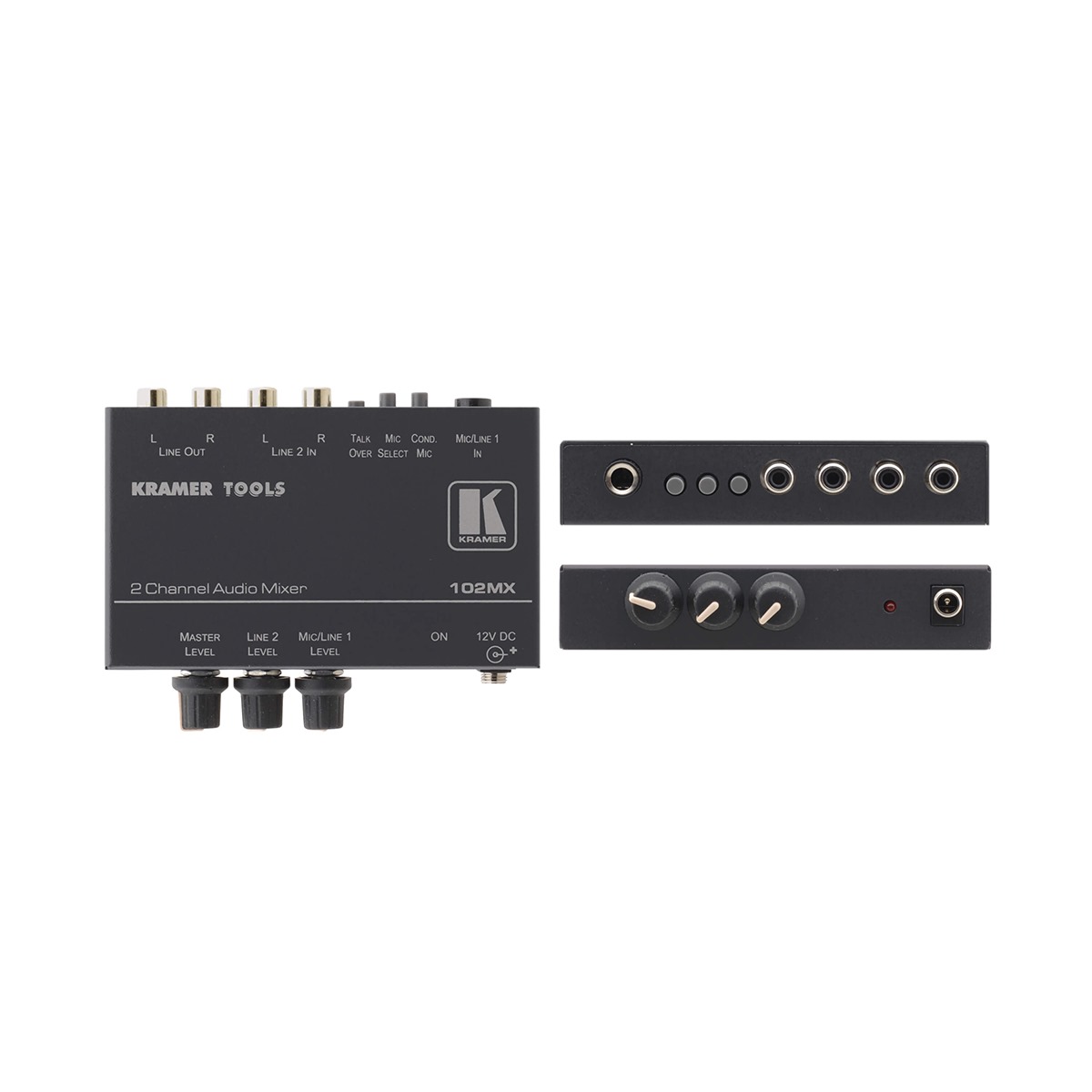

102MX 2–Channel Stereo Audio Mixer
The 102MX is a high-performance 2-channel stereo audio mixer designed for line-level and microphone-level signals. It combines one line-level input with either a microphone input or a second line-level input to deliver a mixed audio output, making it suitable for professional audio applications.
- S/N — 69dB
- Mic — Condenser or Dynamic
- Level Control
- Talk Over Button

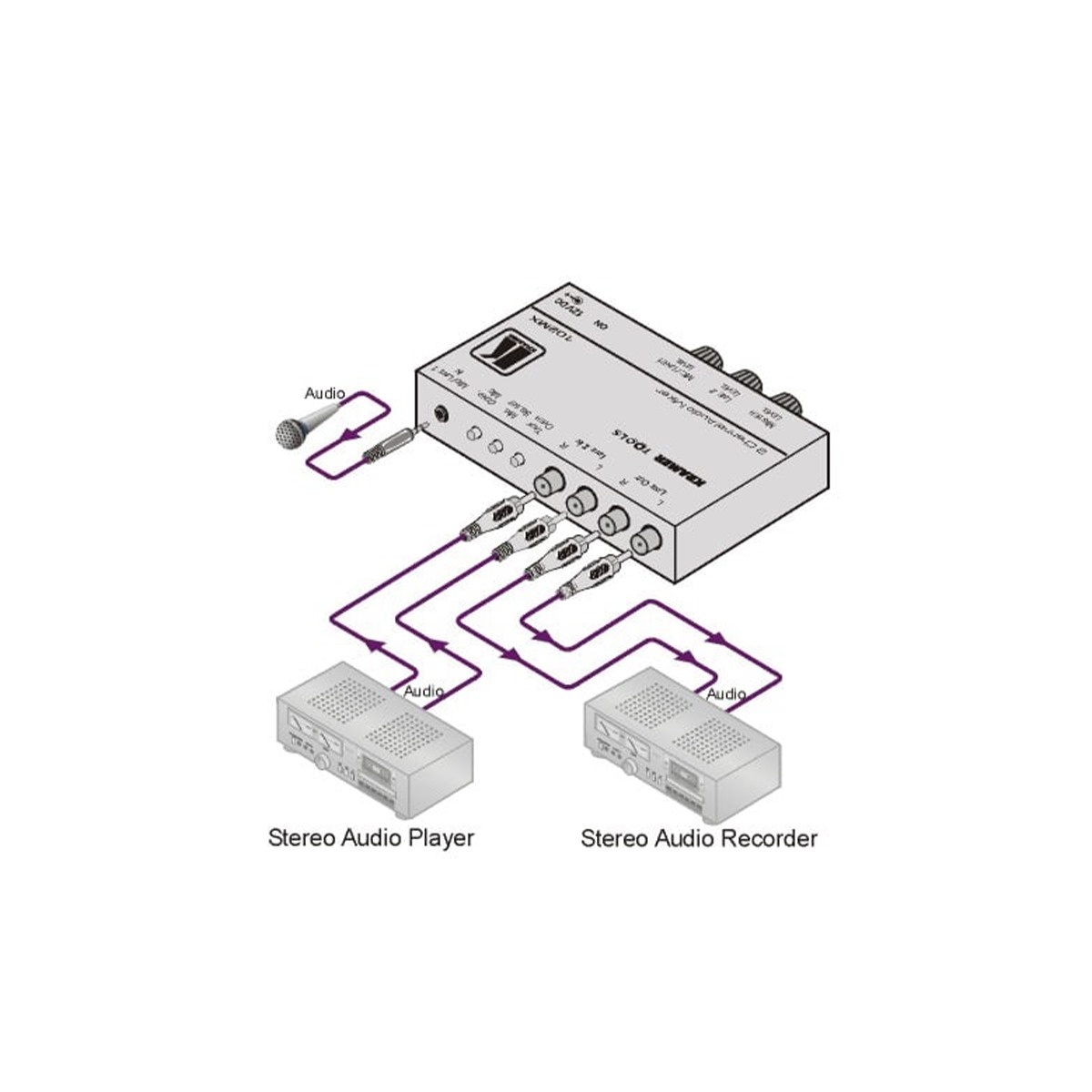

| INPUTS | Mic/line 1: 10mV/1.6kΩ, 1Vpp/10kΩ, on a 6.5mm phone connector; Line 2: 1Vpp/10kΩ, stereo on RCA connectors |
| OUTPUTS | Line level, stereo, up to 5.6Vpp/150Ω on RCA connectors |
| BANDWIDTH (-3dB) | 100kHz |
| GAIN RANGE | −12dB to 68.5dB (mic); −12dB to +8.8dB (line) |
| DIFF. PHASE | 0.05Deg |
| S/N RATIO | 69dB |
| CONTROL | Mic/line 1 level, line 2 level, master level rotary controls, condenser/dynamic mic, line/mic, talkover selection switches |
| AUDIO THD+NOISE | 0.018% |
| 2nd HARMONIC | 0.002% |
| POWER CONSUMPTION | 12V DC, 40mA |
